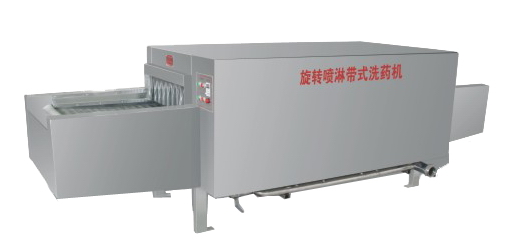

旋转喷淋带式洗药机

  • 适用于块状及果实类药物済洗后的沥水、脱水,也 适用于食品、壤头等行业同类物料的脱水。转速变頻可调,可连续作业,清场方便,符合 GMP要求。
  • 咨询热线:0394-8583481
  • 产品详情



主要用途
适用于植物药的済洗除尘,尤其适用于根、茎类植物药材。

Main uses
Suitable to wash away the duel on the herb, especially the dust on the stems and roots.

主要特点
输送电机(变频调速)通过链轮、链条驱动前辊轮链条网带运动,转动电机通过链轮、链条及偏心装置实现八组喷水管的往复转动,本机较传统洗药机节水50%,有很好清洗效果,符合GMP要求。

Main technical characteristics
The conveying motor drives the chain wheel, the front roller and apron chain net. And the rolling motor could achieve the result that eight faucets spray water repeatedly at the same time through the chain roller, the chain and the eccentric device. In this way the machine can save about 50% water. Thus it could meet the requirements of GMP.

主要技术参数 Main technical parameter

型号
Type
生产能力
Capacity
(kg/h)
网带宽度
Belt width
(mm)
电机功率
motor
(KW)
水压
water
pressure
(MPa)
外形尺寸
dimension
(mm)
总重量
weight
(kg)
XYD-600 500-1500 600 0.75x2 0.3 4100x1150x1100 650
